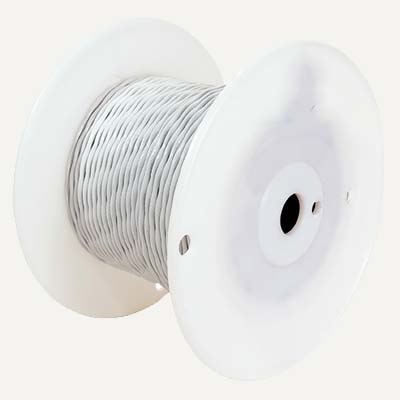

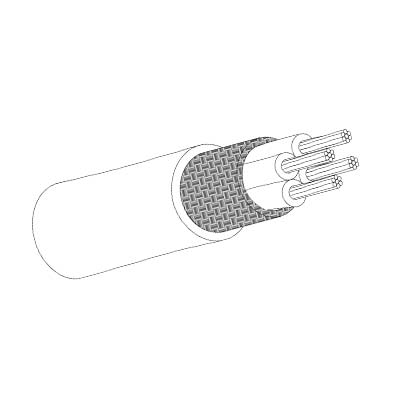

M27500-24TG4T14 Shielded Tefzel Cable | 24 AWG, 4 Conductor

M27500-24TG4T14 is a high-performance 24 AWG shielded 4-conductor cable constructed with extruded ETFE (Tefzel®) insulation and a tin-plated copper conductor. This Mil-Spec cable meets the rigorous requirements of SAE AS22759/18 and M27500 specifications, making it ideal for mission-critical aerospace, military, and commercial aviation applications.

Designed for harsh environments, this cable provides exceptional mechanical toughness, thermal stability, and chemical resistance. It excels in SWAMP zones (Severe Wind and Moisture Prone) such as engine nacelles or aircraft cabins where low smoke, flame resistance, and overload durability are essential.

Whether you’re outfitting an airframe, wiring an avionics bay, or servicing ground support equipment, this shielded Tefzel wire delivers reliable signal integrity and EMI protection in even the most demanding conditions.

✅ Meets SAE AS22759/18 & M27500 specifications
✅ Shielded 4-conductor cable for EMI/RFI protection
✅ 24 AWG tin-plated copper conductor
✅ Extruded ETFE (Tefzel®) insulation for superior heat and chemical resistance
✅ 600V / 150°C rated for aerospace-grade durability
✅ Ideal for avionics, airframes, and support systems

Built with Tefzel® ETFE Insulation Built with Tefzel® ETFE insulation, this cable offers outstanding resistance to heat, abrasion, and chemicals, making it ideal for aircraft electrical systems. Trusted in both certified and experimental aircraft, Tefzel wiring is a go-to choice for durable, lightweight installations.
