Gigaflight High-Speed CAN Bus Cable | 24 AWG

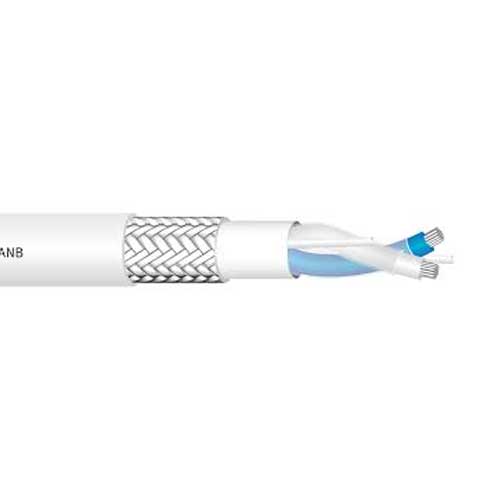

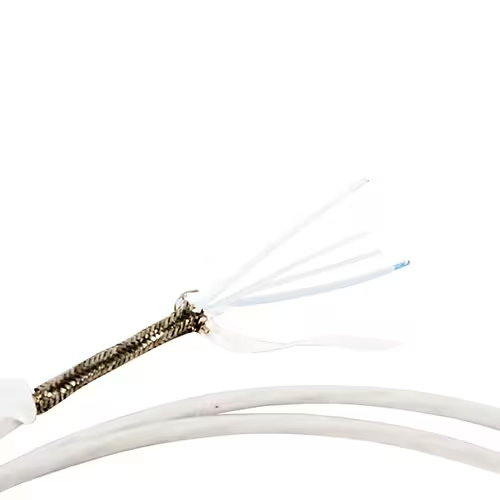

The Gigaflight™ High-Speed CAN Bus Cable is a premium 24 AWG twinax data cable engineered for modern digital avionics networks. Approved by Garmin for use in its CAN Bus system architectures, this lightweight, laser-markable cable ensures reliable signal integrity and long-term durability in harsh aerospace environments.

Designed to the 120 Ω CAN Bus standard, the Gigaflight cable uses an innovative dual-wall insulation system that achieves the correct impedance while maintaining compatibility with standard aircraft contacts—eliminating common extraction issues caused by oversized insulation diameters. Its advanced fluoropolymer construction provides outstanding thermal, chemical, and mechanical performance.

Key Features

• Impedance: 120 Ω Twinax configuration
• 24 AWG stranded, silver-plated high-strength copper alloy (HSCA) conductors
• Dual-wall insulation: solid and foamed high-temperature fluoropolymer layers
• FEP filler and PTFE binder tape for dimensional stability
• Tin-plated copper strip braid shield (≥ 92 % coverage)
• White laser-markable ETFE (Tefzel) jacket
• Operating temperature range: –55 °C to +200 °C
• Approved by Garmin for CAN Bus avionics systems

The Gigaflight 24 AWG CAN Bus Cable delivers unmatched electrical stability, EMI protection, and ease of termination—ideal for flight control, sensor networks, and digital data bus installations in both commercial and military aircraft.
