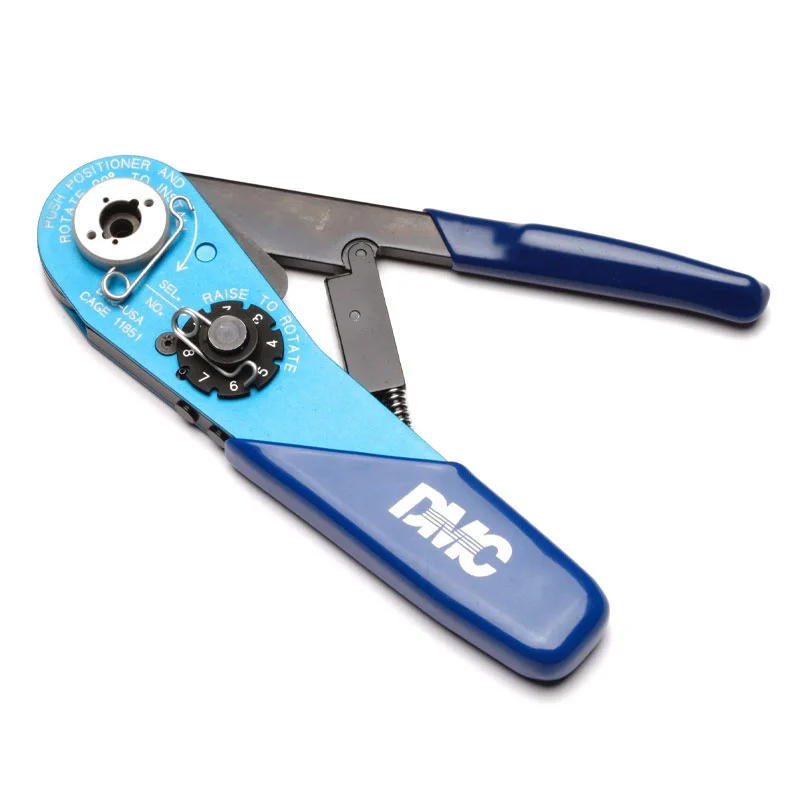

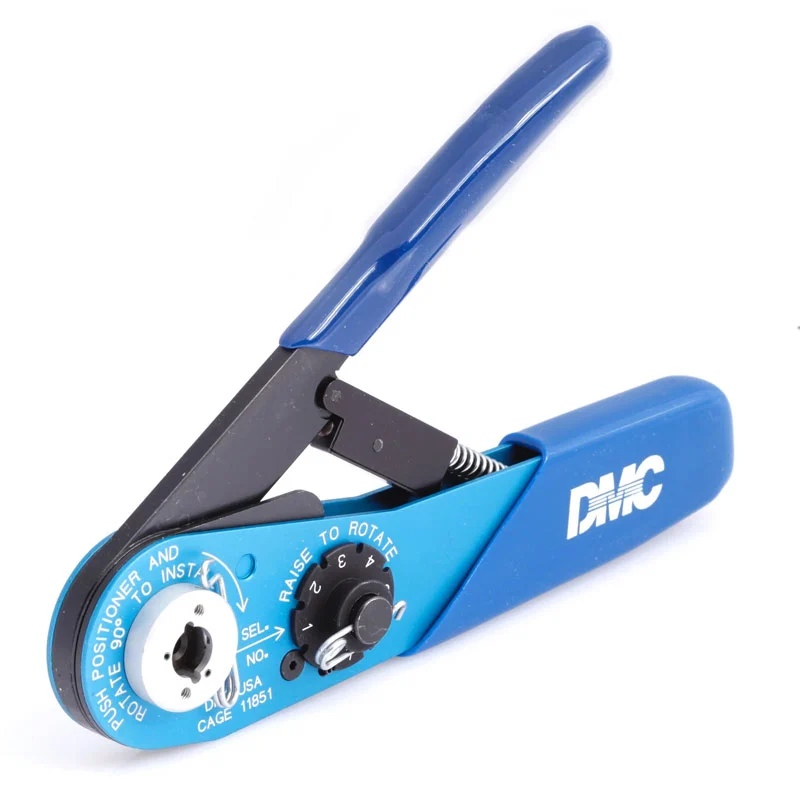

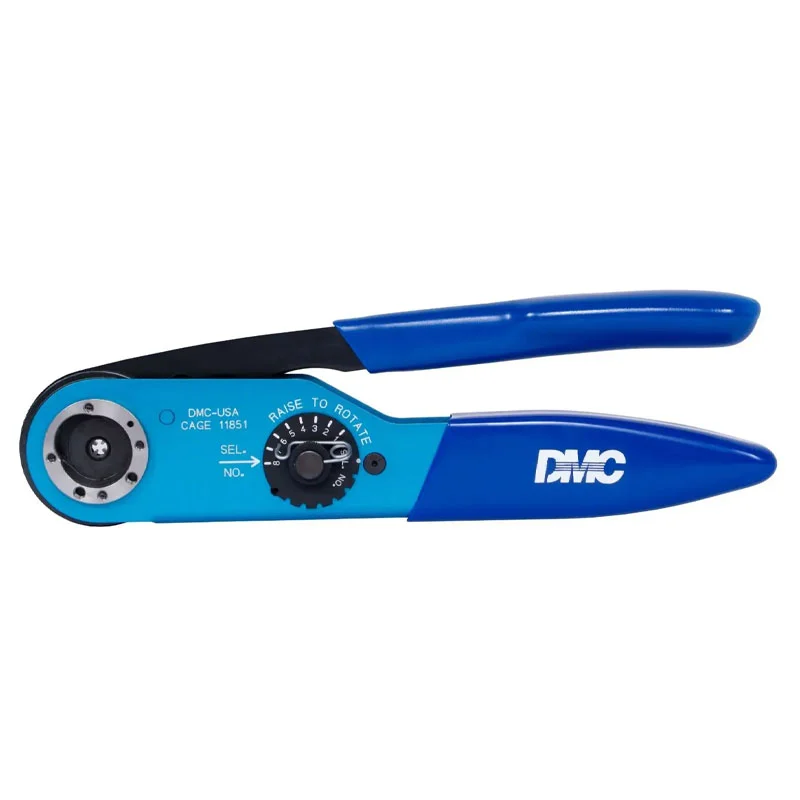

DMC AFM8 Miniature Adjustable Indent Crimp Tool | 32–20 AWG

The Daniels Manufacturing Corporation (DMC) AFM8 is a miniature adjustable indent crimp tool designed for precision electrical terminations in aircraft, avionics, and electronic systems. Originally developed for the U.S. Air Force, the AFM8 meets the need for a compact crimping solution that accommodates wire sizes from 32 to 20 AWG. It is ideal for use with most miniature and sub-miniature connectors found in modern aerospace applications.

Qualified to Mil-Spec M22520/2-01, the AFM8 features a positive ratchet mechanism that ensures a complete crimp cycle every time, maintaining uniform contact deformation and conductor engagement. Its lightweight, ergonomic frame allows for comfortable use in tight spaces, while the precision calibration guarantees repeatable, high-quality crimps that meet strict aviation standards.

Key Features

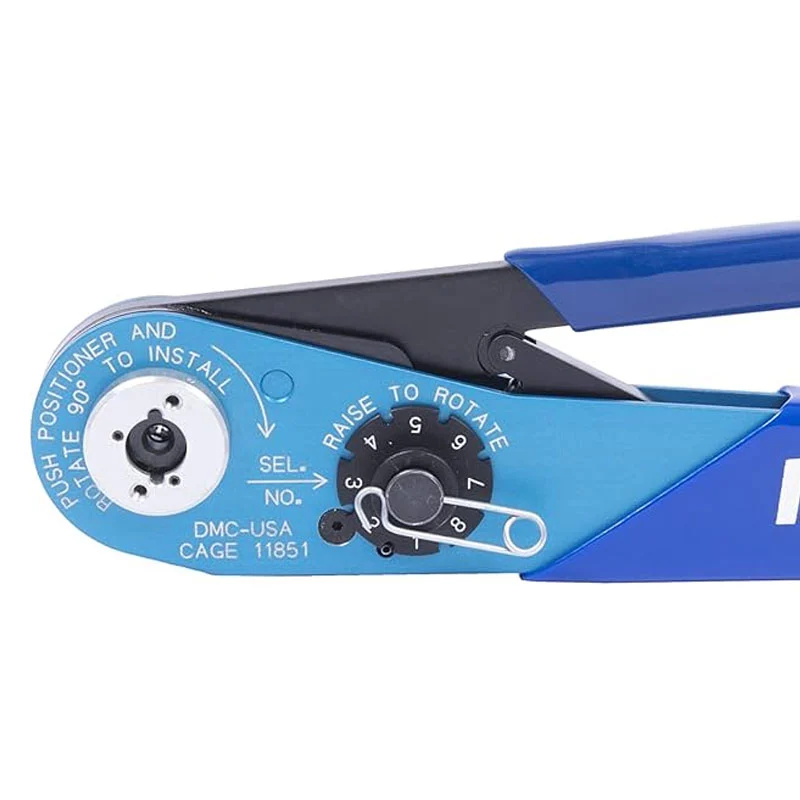

• Built-in eight-step crimp depth selector knob
• Cycle-controlled precision ratchet ensures complete crimp cycles
• For miniature and sub-miniature connector types
• Accepts Daniels “K” series positioners (sold separately)
• Wire crimp range: 32–20 AWG
• Produces Mil-Standard 8-impression indent crimps
• Qualified to M22520/2-01

Positioners and dies are sold separately. The DMC AFM8 is widely approved by major OEMs and MRO facilities for use on Mil-Spec contacts across avionics, communication, and defense systems.
