Ideal 30-500 Crimpmaster Crimp Tool | 22–10 AWG

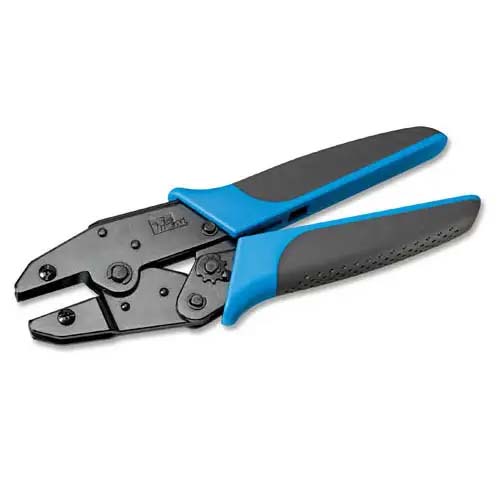

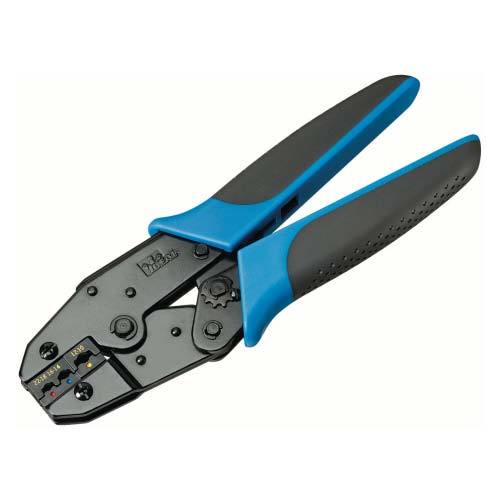

The Ideal Industries 30-500 Crimpmaster™ is a professional-grade, ratcheting crimp tool designed for insulated wire terminals used across electrical, commercial, and light aviation applications. It includes the Crimpmaster tool frame and a three-cavity die that supports 22–10 AWG insulated ring, butt, and spade terminals.

The heavy-duty carbon steel frame provides long-term durability, while the black oxide finish protects against corrosion. A full-cycle ratcheting mechanism ensures that every crimp is completed with the correct compression force, preventing partial or under-crimped terminations. The ergonomic handles provide improved leverage and user comfort during repetitive crimping tasks.

The Crimpmaster system supports over 15 interchangeable die sets, allowing the tool to be configured for RF connectors, insulated and uninsulated wire terminals, modular plugs, and specialty connectors. Dies can be swapped quickly using only a screwdriver, and the adjustment wheel allows fine tuning to suit different crimp profiles.

Key Features

• Includes Crimpmaster tool frame and 3-cavity die set (22–10 AWG)
• Designed for insulated ring, butt, and spade terminals
• Full-cycle ratcheting mechanism ensures consistent crimps
• Heavy-duty carbon steel frame with black oxide finish
• Ergonomic contoured handles for comfort and leverage
• Compatible with more than 15 Crimpmaster interchangeable die sets
• Quick-change die system requires only a standard screwdriver
• Fine-tune adjustment for optimal crimp compression

Included Components

• 30-500 Crimpmaster™ ratcheting tool frame
• 3-cavity insulated terminal die set (22–10 AWG)

Typical Applications

Electrical harness work, insulated wire terminations, panel installations, general aviation maintenance, RF/modular plug crimping (with optional dies), and field repairs.
